Why flange surface condition determines system integrity
G.B.C. Gulf flange facing machines are used across Oil & Gas pipelines, desalination plants, and power generation facilities throughout the UAE and wider Gulf region. Thermal cycling, mechanical stress, and years of service degrade flange surfaces – distortion, pitting, and scoring that prevent gaskets from seating correctly. In an active refinery or operating desalination plant, a damaged sealing face can force an unplanned shutdown or trigger a safety event. G.B.C. machines restore these surfaces in place, without removing the line from service.
Both machines in the G.B.C. range operate by cold mechanical cutting – no heat, no sparks, no Hot Work permit required. In the Gulf, where live refineries, active desalination plants, and nuclear facilities enforce strict controls over heat-generating processes on-site, cold mechanical facing is frequently the only approved method for in-situ work without shutting down adjacent operations.

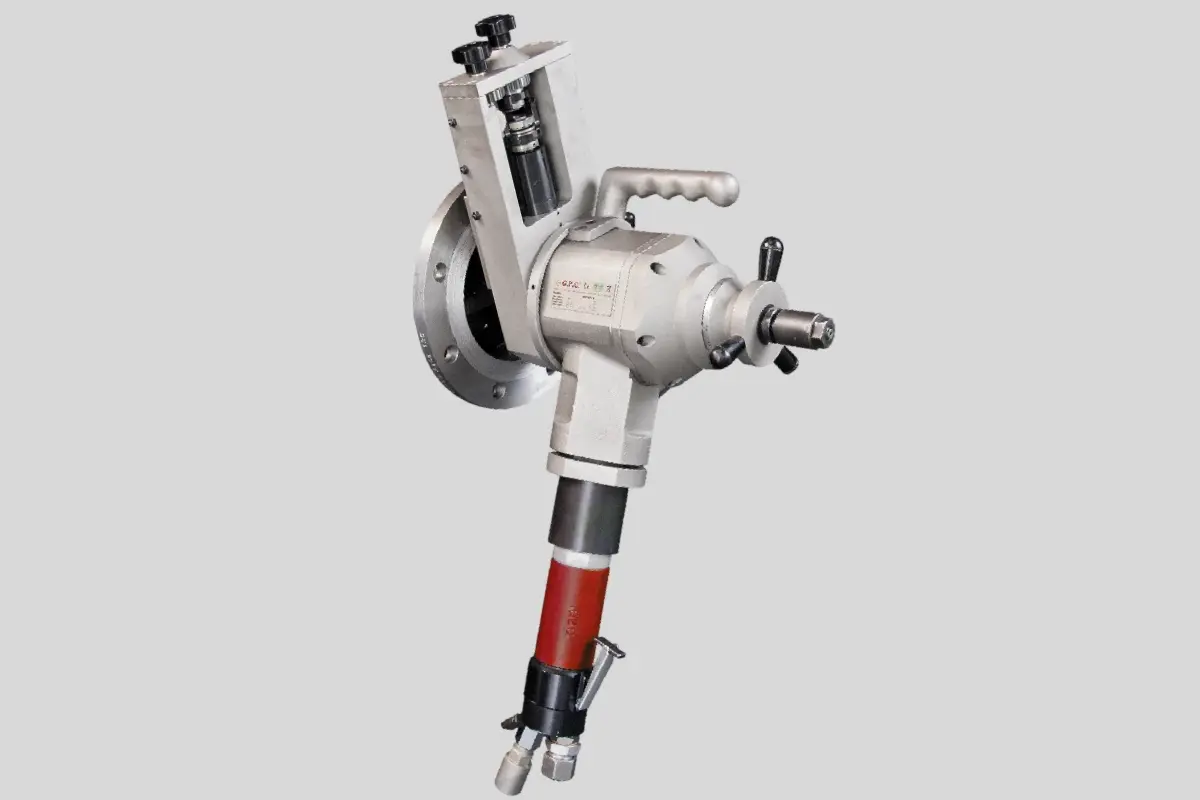

Superboiler T5 Flange: small and medium flanges from 65 to 400 mm
The Superboiler T5 Flange handles flanges from 65 mm to 400 mm and produces four surface finishes: stock finish, smooth finish, phonographic (spiral) grooving, and concentric grooving. Automatic radial feed controls depth and progression with precision that manual operation cannot match. Drive options are pneumatic, electric, or hydraulic, covering Gulf site utilities from offshore platforms to onshore plant turnarounds. Material capability spans carbon steel, stainless steel, and Duplex.

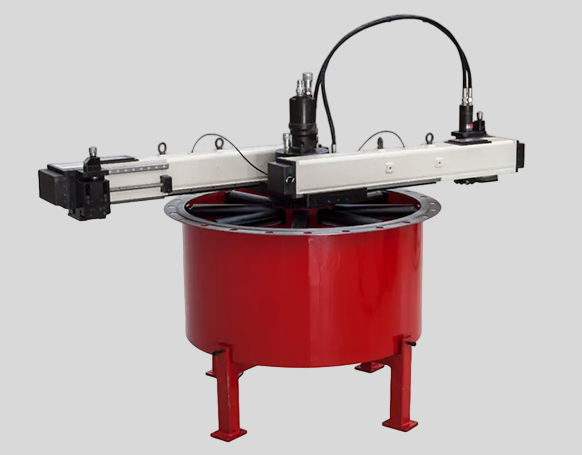

Spider 12_70: large-diameter flanges from 304.8 to 1778 mm
The Spider 12_70 resurfaces flanges from 304.8 mm (12″) to 1778 mm (70″), covering pipeline interconnects, pressure vessel nozzles, and large-bore desalination and power station pipework. Self-centering clamping locates on the flange bore without external jigs. Integrated software allows to set the program parameters, the details of the flange and the desired finish, and logs settings for repeat maintenance cycles. Pneumatic or hydraulic drive; material capability extends to Duplex, Super Duplex, and Inconel.
Industrial applications across Gulf sectors
Flange facing machines Gulf operators use most frequently fall into three operational contexts: planned maintenance turnarounds, emergency restoration after flange damage or leakage, and quality preparation during new construction.
Oil & Gas. Across UAE and Gulf refineries, petrochemical plants, and onshore pipeline networks, flanged connections on high-pressure process lines require periodic resurfacing as part of scheduled maintenance. Cold mechanical operation means no Hot Work permit is required on live plant – a significant scheduling advantage for all facilities. The G.B.C. range covers 65 mm nozzle flanges up to 1,778 mm transmission pipe flanges.
Water and desalination. Large-diameter Duplex and Super Duplex flanges on RO pressure vessel connections and pump casing joints at most facilities require cold mechanical facing. Heat-generating methods can compromise the corrosion-resistant microstructure of these alloys; the G.B.C. process preserves the material specification while eliminating the need for extended plant shutdowns.
Power generation. Gas plants, combined cycle facilities, and nuclear plants all contain flanged connections on high-temperature circuits requiring periodic resurfacing. At nuclear facilities, the Spider 12_70’s software-assisted operation provides the controlled, documented process that regulatory inspection requires, and its cold mechanical method keeps the work within the operational constraints of a live nuclear environment.
Flange integrity in hydraulic and fluid transport systems
Hydraulic and process circuits. In hydraulic power units, gas distribution networks, and high-purity process lines, a sealing surface with minor distortion or scoring causes uneven gasket seating – a joint that appears tight initially but passes fluid over time. The Superboiler T5 Flange’s phonographic spiral grooving finish and precise automatic radial feed produce the controlled gasket seating surface these applications require.
District cooling. District Cooling providers distribute chilled water through large-diameter carbon steel mains across UAE urban networks. Flange maintenance on these systems takes place with the network live, often in confined below-grade chambers at high ambient temperature. The cold mechanical process and self-contained hydraulic or pneumatic drive options make G.B.C. flange facing machines practical tools for this operating context.
Choosing the right flange facing machine
Selection between the two models is primarily a function of flange diameter, with drive configuration and finish requirements as secondary factors.
Superboiler T5 Flange (65-400 mm): suited to plant maintenance and turnaround work on instrumentation, hydraulic, and utility piping. Phonographic spiral grooving capability makes it the correct choice where gasket standards specify a spiral finish, as is common in oil and gas and hydraulic system flanges. Pneumatic, electric, or hydraulic drive.
Spider 12_70 (304.8-1,778 mm): the right machine for large-diameter pipeline flanges, pressure vessel nozzles, pump and compressor connections, and the oversized flanged joints of desalination plant and power station pipework. Software-assisted machining and self-centering clamping make it suitable for oil and gas, nuclear, and large water infrastructure projects across the Gulf region.
G.B.C. Gulf’s team can advise on model selection, drive configuration, and tooling requirements based on your specific diameter range, material, and operating environment. Contact us with your project details.
Enquire about flange facing machines
G.B.C. Gulf supplies flange facing machines to customers across the UAE, Saudi Arabia, Qatar, Kuwait, and the wider Gulf region. Whether you are specifying equipment for a plant turnaround, a new construction project, or an ongoing maintenance programme, our team will confirm the correct machine, drive configuration, and tooling setup for your flanges. Contact us directly with your diameter range, flange material, required surface finish, and site conditions.
